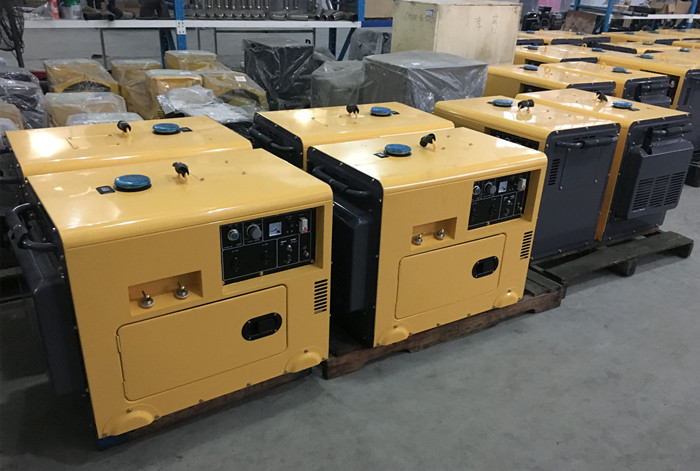

180A welding diesel generator electric start silent type welder genset
| Genset | Model No. | 6500TW (Silent type) | 6500EW (Open type) |
| Rated frequency (Hz) | 50 | 50 |
| Rated voltage (v) | 230 | 230 |
| Rated current(A) | 7.4 | 7.4 |
| Rated Output power(kW) | 1.7 | 1.7 |
| Rated rotation speed(rpm) | 3000 | 3000 |
| Power factor | 1 | 1 |
| Phase number | Single phase | Single phase |
| Noise level dB@7m | 75-77 | 85 |
| Overall dimension (L*W*H)MM | 950x560x750 | 780x500x640 |
| Net weight | 170 | 110 |
| | | | |
| Engine | Engine type | 186FAE | 186FAE |
| Structure type | Single cylinder , in lined 4 stroke, air cooled direct injection | Single cylinder , in lined 4 stroke, air cooled direct injection |
| Bore * stroke mm | 86X72 | 86X72 |
| Displacement ml | 418 | 418 |
| Compression ratio | 19:01 | 19:01 |
| Rated output(kw/rpm) | 5.9/3000 | 5.9/3000 |
| Lubrication system | pressure splashed | pressure splashed |
| Lue oil brand | Above CD SAE 10W 30 15W 40 | Above CD SAE 10W 30 15W 40 |
| Staring system | 12V Electric starter | 12V Electric starter |
| Starting motor capacity | 12V 0.8KW | 12V 0.8KW |
| Charging generator capacity | 12V 3A | 12V 3A |
| Battery capacity | 12V 36AH | 12V 36AH |
| Fuel consumption rate(g/kw.h) | 3000rpm 275 | 3000rpm 275 |
| Fuel type | Diesel 0# or 10# 35# | Diesel 0# or 10# 35# |
| Fuel tank capacity (L) | 15 | 15 |
| Continuous Running time(H) | 8 | 8 |
Specifications:
Welder generator current capacity 180A , Generator power 1.7KW
Dimension 950x560x750mm Net Weight 165KGS
Quantity for 20 foot container 72 sets
Quantity for 40 foot container 114 sets
100% copper alternator
CE and ISO certification
14 days delivery time
8 hours fuel tank
Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
If have any questions, please contact us. Your inquiry would be appreciated.
